Research Article - Biomedical Research (2018) Volume 29, Issue 18

Meta-analysis in effects of barefoot and athletic footwear on lower extremity stiffness during dynamic activity

Jing LI^1#, Hai-Bin YU^2,3*# and Yung-Shen TSAI^4*

¹College of Textiles and Apparel, Quanzhou Normal University, Quanzhou, PR China

²School of Physical Education, Quanzhou Normal University, Quanzhou, PR China

³Department of Sports Sciences, University of Taipei, Taiwan

⁴Graduate Institute of Sports Equipment Technology, University of Taipei, Taiwan

^#These authors contributed equally to this work

*Corresponding Authors:

Hai-Bin YU
Department of Sports Sciences
University of Taipei, Taiwan

Yung-Shen TSAI
Graduate Institute of Sports Equipment Technology
University of Taipei, Taiwan

Accepted date: October 4, 2018

Abstract

Objective: To search the original research and investigate the evidence relating to the effectiveness of the type of athletic footwear affects the regulation of lower extremity stiffness.

Method: Meta-analysis.

Results: There are 12 trails leg stiffness (Risk ratio RR-0.47, 95% confidence interval CI: -0.70 to -0.25, the overall effect size Z=4.13, p<0.001), 10 trails knee stiffness (RR -0.59, 95% CI: -0.82 to -0.35, Z=4.97, p<0.001) and 3 trails vertical stiffness (RR -0.51, 95% CI:-0.93 to -0.10, Z=2.41, p=0.02), meta-analysis found that athletic footwear were effective. But 10 trails ankle stiffness (RR 0.82, 95% CI: 0.63 to 1.00, Z=8.74, p<0.001), and 4 trails hip stiffness (RR 0.46, 95% CI: 0.10 to 0.81, Z=2.54, p=0.01) were opposite.

Conclusion: This review adds to the body of knowledge by strongly highlighting the dearth of literature exploring the effects of athletic footwear on lower extremity stiffness during dynamic activities. When shod leg, vertical and knee stiffness are decrease, but ankle and hip stiffness were increase compare to barefoot.

Keywords

Lower extremity stiffness, Athletic footwear, Barefoot, Meta-analysis

Introduction

Athletic footwear is necessary in the most sports activity, as provision of traction between the foot and the ground, control of motion, protection of the plantar surface of the foot, and attenuation of impact forces during activity [1,2]. Research has also shown how certain footwear can directly influence function. A common feature of modern athletic footwear is that of increased sole hardness or thickness which are marketed as providing cushioning against harmful impacts [3].

However, as footwear is introduced as a variable into the lower extremity-surface system, the series of springs that represent the lower extremity should adjust for the new substance in order to maintain total system stiffness [4] 1/K_total=1/K_leg+1/ K_surface+1/K_shoe. The “stiffness” concept has its origin in sports, as part of Hooke’s law [5-9]. Research into stiffness in the human body is an escalating rate, possibly because stiffness has been associated with sporting performance and some lower extremity injuries. A large number of studies have compared walking and running kinetics, kinematics and electromyogram between barefoot and shod conditions [10-17]. Although reviews examining differences between barefoot and shod walking and running exist, the majority of these are narrative. Thus, some reviews do not describe clear methodology for literature searching nor systematically evaluate the quality of studies included, leaving them vulnerable to bias [18,19]. Where two systematic review of barefoot and shod biomechanics has been carried out, the focus was purely on kinematic, kinetic and muscle activity different and considered walking and running [20,21]. If the cushioning in athletic footwear attenuates impact, then overall lower extremity stiffness may be modified during dynamic activity. To date, some studies have examined the effects of athletic footwear on lower extremity stiffness performance during dynamic activities [22-25].

A key consideration, however, is whether athletic footwear effects lower extremity stiffness performance specifically. If so, what type of athletic footwear is better suited for increased stiffness performance? Consequently, the purpose of this systematic review was to search the body of scientific literature for original research, addressing the effects of athletic footwear on lower extremity stiffness during dynamic activities. To determine if the type of athletic footwear affects the regulation of lower extremity stiffness.

Methods

Experimental approach to the problem

This meta-analysis is reported in accordance with the preferred reporting items for meta-analyses (PRISMA) guidelines [18]. Several electronic databases were searched from the earliest available date up to the first week of February 2018, including Medline, Science Direct, Sports Discus, EMBASE, Web of Science, the Wiley Online Library, and Cochrane library, Journal of Gait and Posture, and the Journal of Biomechanics.

Study criteria

Studies were eligible if they met the following inclusion criteria: their sample was from an adult population with no musculoskeletal injuries. The primary objective of the original research paper was to determine the effect of different types of athletic footwear or different contact surface on lower extremity stiffness.

Quality assessment

Original research was reviewed using the physiotherapy evidence database (PEDro) scale [18]. Each study was scored according to the scale with each item graded as yes (1 point), no (0 points), or unable to determine (0 points) to give a total score out of 11. Finally systematic review 12 studies,and 6 studies met the inclusion criteria [22,25-29].

Data extraction

Data from each trial were extracted from the available text. Meta-analysis was calculated using the Cochrane Collaboration Review Manager V.5.3 software (Cochrane Collaboration Review Manager).

Results

In total, we retrieved 1636 studies and included 12 studies in the systematic review. All of the studies were published or written after 2000 year. Of the 12 studies, we included 6 studies into meta-analyses based on the same outcome measures in each domain (Figure 1). Twenty-one types of intervention shoes were used in the included studies. The test protocol running speed from 2.2 m/s to 5.5 m/s. Three kinds of dancer's jump landings. 2.2 Hz rope jumping. Three kinds of vertical jump and landing. Three kinds of basketball jump and landing.

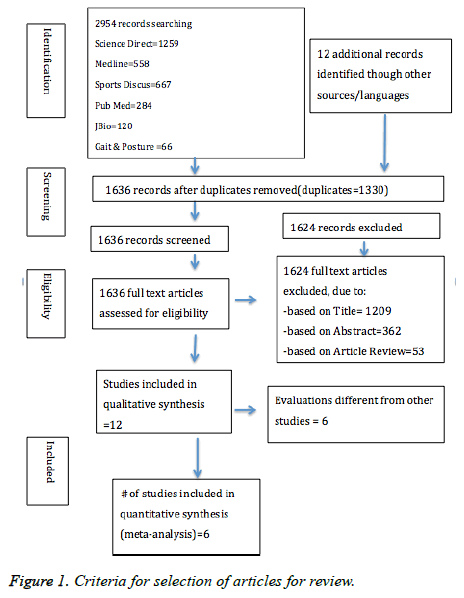

Figure 1: Criteria for selection of articles for review.

The data from the twelve trials evaluating shoe-barefoot leg stiffness were pooled, all trials yielding results favouring the use of shoes for the effect of leg stiffness compared with a control. The pooled data indicated that shoes are effective for the effect of leg stiffness (RR-0.47, 95% CI: -0.70 to -0.25, Z = 4.13, p<0.001), with heterogeneity of results between trials being low (I²=25%) (Figure 2a).

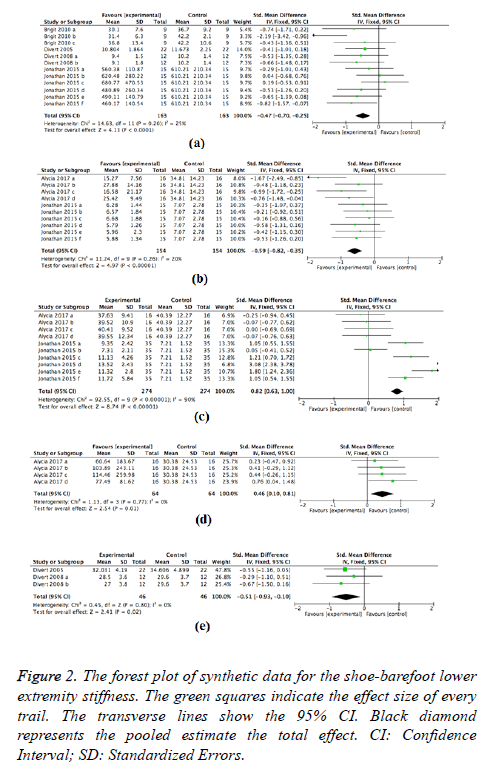

Figure 2: The forest plot of synthetic data for the shoe-barefoot lower extremity stiffness. The green squares indicate the effect size of every trail. The transverse lines show the 95% CI. Black diamond represents the pooled estimate the total effect. CI: Confidence Interval; SD: Standardized Errors.

The data from the ten trials evaluating shoe-barefoot knee stiffness were pooled, all trials yielding results favouring the use of shoes for the effect of leg stiffness compared with a control. The pooled data indicated that shoes are effective for the effect of knee stiffness (RR -0.59, 95% CI: -0.82 to -0.35, Z=4.97, p<0.001), with heterogeneity of results between trials being low (I²=20%) (Figure 2b).

The data from the ten trials evaluating shoe-barefoot ankle stiffness were pooled, with three yielding results favouring the use of shoes for the effect of ankle stiffness compared with a control. Seven trials don't favour the experimental intervention. The pooled data indicated that shoes are not effective for the effect of ankle stiffness (RR 0.82, 95% CI: 0.63 to 1.00, Z=8.74, p<0.001), with heterogeneity of results between trials being high (I²=90%) (Figure 2c).

The data from the four trials evaluating shoe-barefoot hip stiffness were pooled, all trials yielding results favouring the use of shoes for the effect of hip stiffness compared with a control. The pooled data indicated that shoes are not effective for the effect of hip stiffness (RR 0.46, 95% CI: 0.10 to 0.81, Z=2.54, p=0.01), with heterogeneity of results between trials being low (I²=0%) (Figure 2d).

The data from the three trials evaluating shoe-barefoot vertical stiffness were pooled, all trials yielding results favouring the use of shoes for the effect of leg stiffness compared with a control. The pooled data indicated that shoes are effective for the effect of vertical stiffness (RR-0.51, 95% CI: -0.93 to -0.10, Z=2.41, p=0.02), with heterogeneity of results between trials being low (I²=0%) (Figure 2e).

Discussion

This review is unique because of its narrow focus on athletic footwear on lower extremity stiffness. Meta-analysis indicated that athletic footwear is effective for the effect on lower extremity stiffness during dynamic activities.

The results of our study (standardized mean difference, SMD range-0.59-0.82) indicated that the athletic footwear showed positive effects on low extremity stiffness during dynamic activities. We demonstrated that varied athletic footwear favors cushion performance. Moreover, compare to normal footwear with hard midsole hardness, soft midsole hardness (such as Asker C-38, C-40, C-45, C-50) [22,30] more positive for knee and ankle stiffness. Despite the volume of athletic footwear available, few have focused specifically on lower extremity stiffness during dynamic activities. One limitation of this review was the small number of studies that met the inclusion criteria, but this further emphasizes that athleticers are using various type of shoes with unpublished empirical evidence to substantiate the type, materials, and property of these athletic footwear.

This review adds to the body of knowledge by strongly highlighting the dearth of literature exploring that leg and vertical stiffness are decrease when shod compare to barefoot. The max force increased when barefoot [27,28], according the equation: K_leg=F_max/ΔL; K_vert=F_max/Δy, so there is no doubt that leg and vertical stiffness are decrease [8]. The result is similar as Jonathan et al. compare with barefoot wearing conventional and structured minimalist footwear run at the speed of 4.01 m/s, significantly decrease leg and vertical stiffness. Brigit et al. also confirmed that compare with barefoot wearing Adidas running shoe run at the speed of 3.5 m/s, significantly decrease leg stiffness. Similar result as Divert et al. compare with barefoot wearing running shoe and more light footwear run at the speed of 3.61 m/s, significantly decrease leg and vertical stiffness.

The result knee stiffness is decrease, but ankle and hip stiffness are increase when shod compare to barefoot [17]. Because change in the knee joint increase, but the angle change in ankle joint decrease [14,17], so according the equation [8], K stiffness=M joint moment/ΔΘjoint angle. Hip Extensor and flexor moment sig. reduced when barefoot. The result is similar as Jonathan et al. compare with barefoot wearing conventional and structured minimalist footwear run at the speed of 4.01 m/s, significantly increase ankle joint stiffness.

Conclusion

This review adds to the body of knowledge by strongly highlighting the dearth of literature exploring the effects of athletic footwear on lower extremity stiffness during dynamic activities. When shod leg, vertical and knee stiffness are decrease, but ankle and hip stiffness were increase compare to barefoot.
